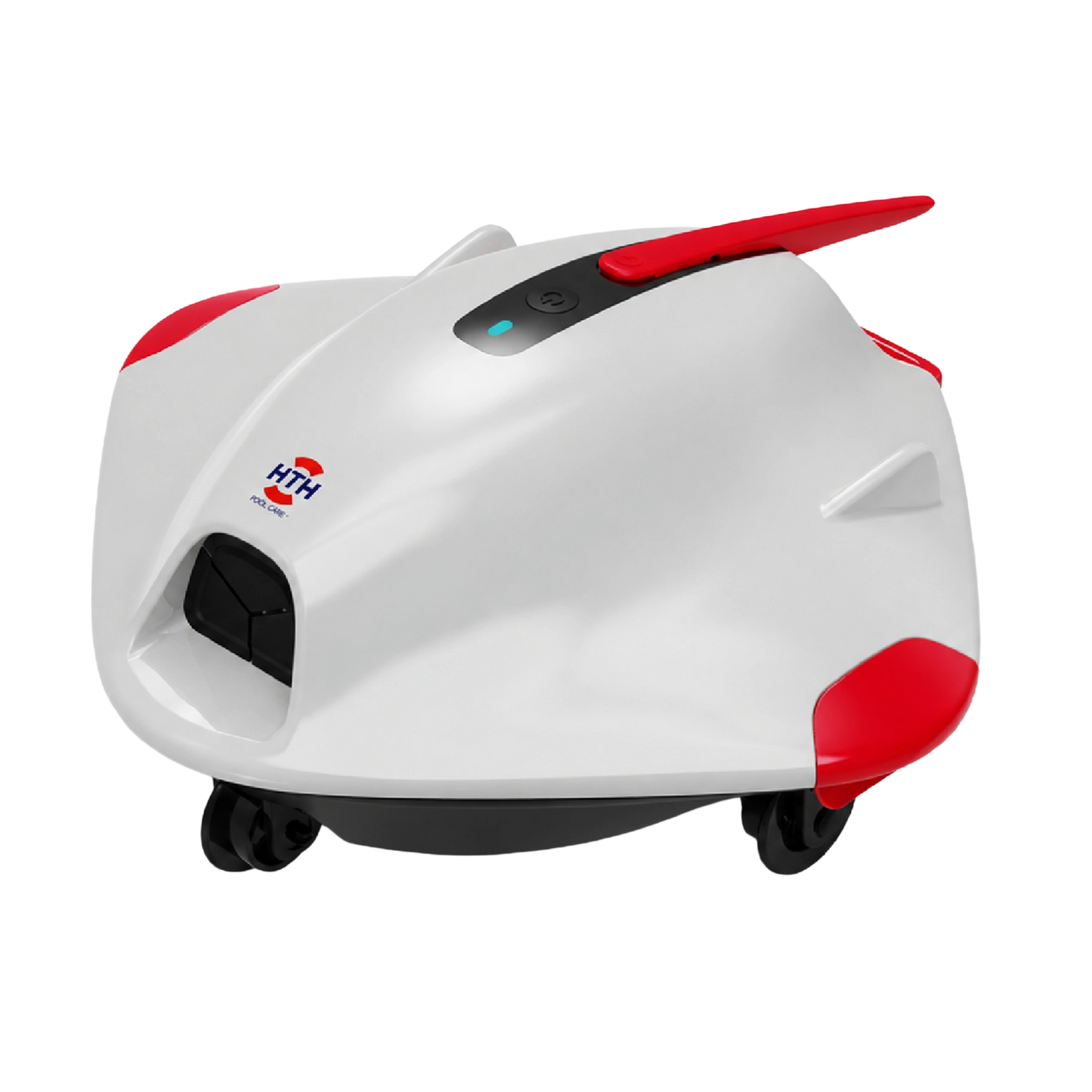

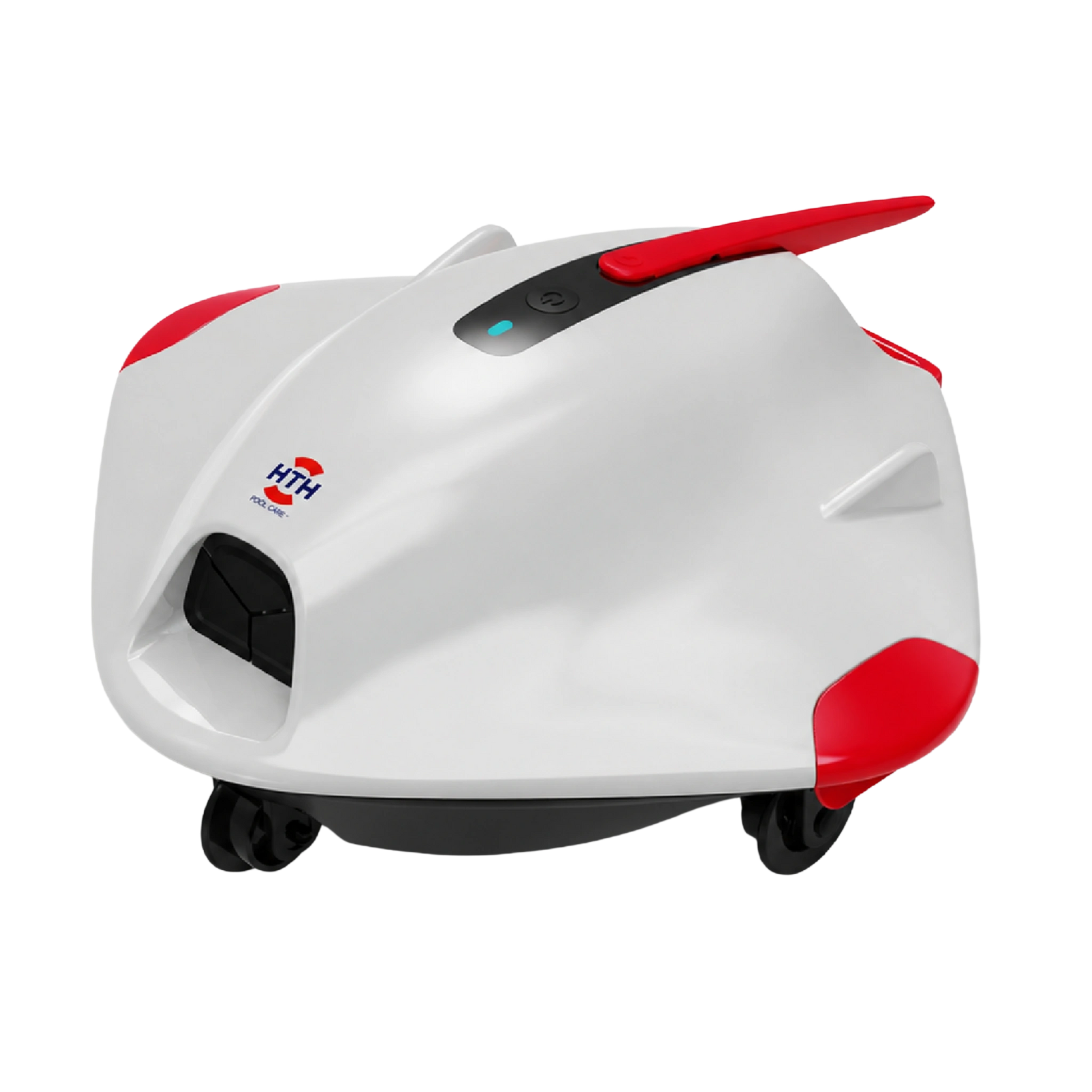

  • HTH cordless robotic pool cleaner designed for above-ground pools with lightweight compact design and automatic cleaning.

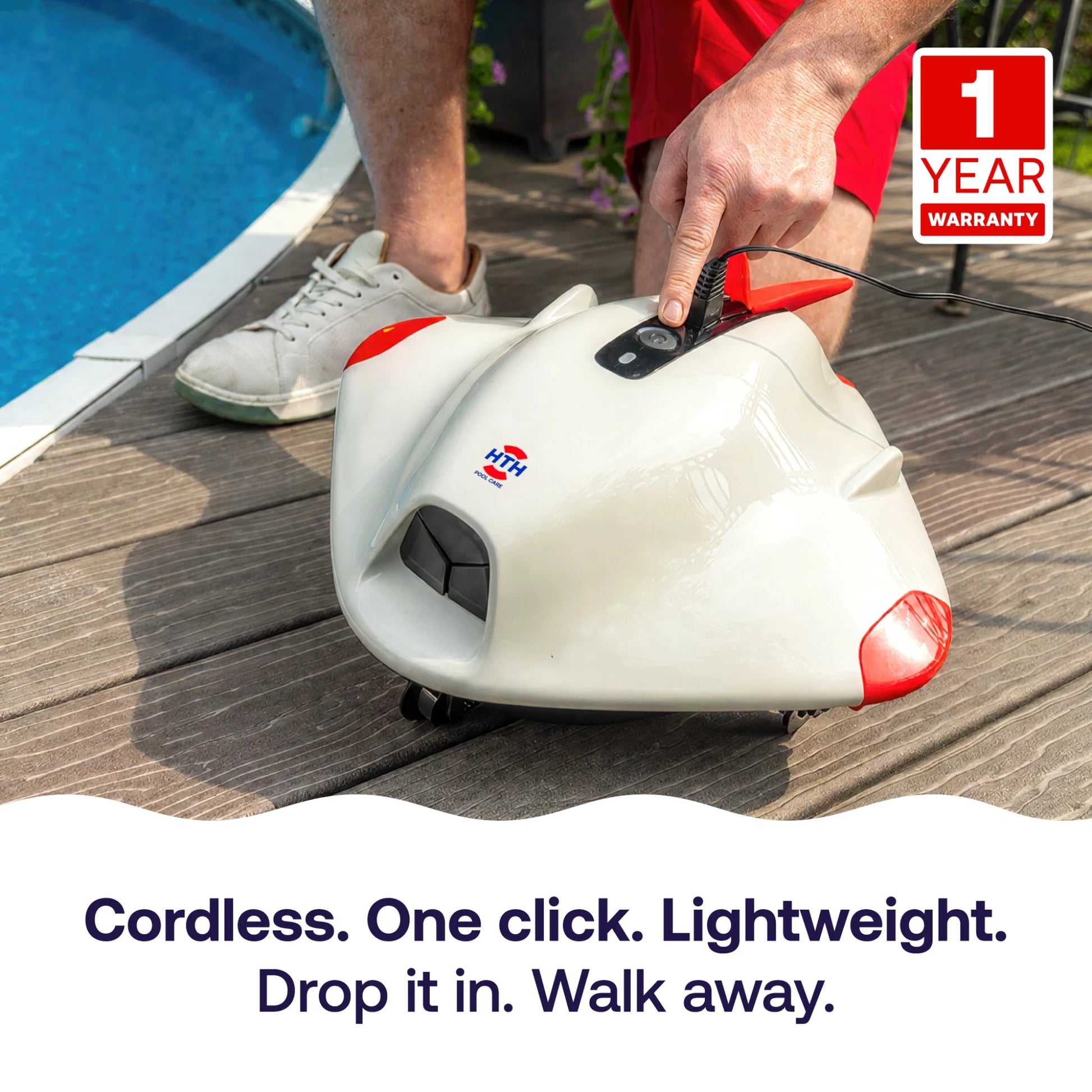

  • User activating the HTH cordless robotic pool cleaner with one-touch operation before placing it into an above-ground swimming pool.

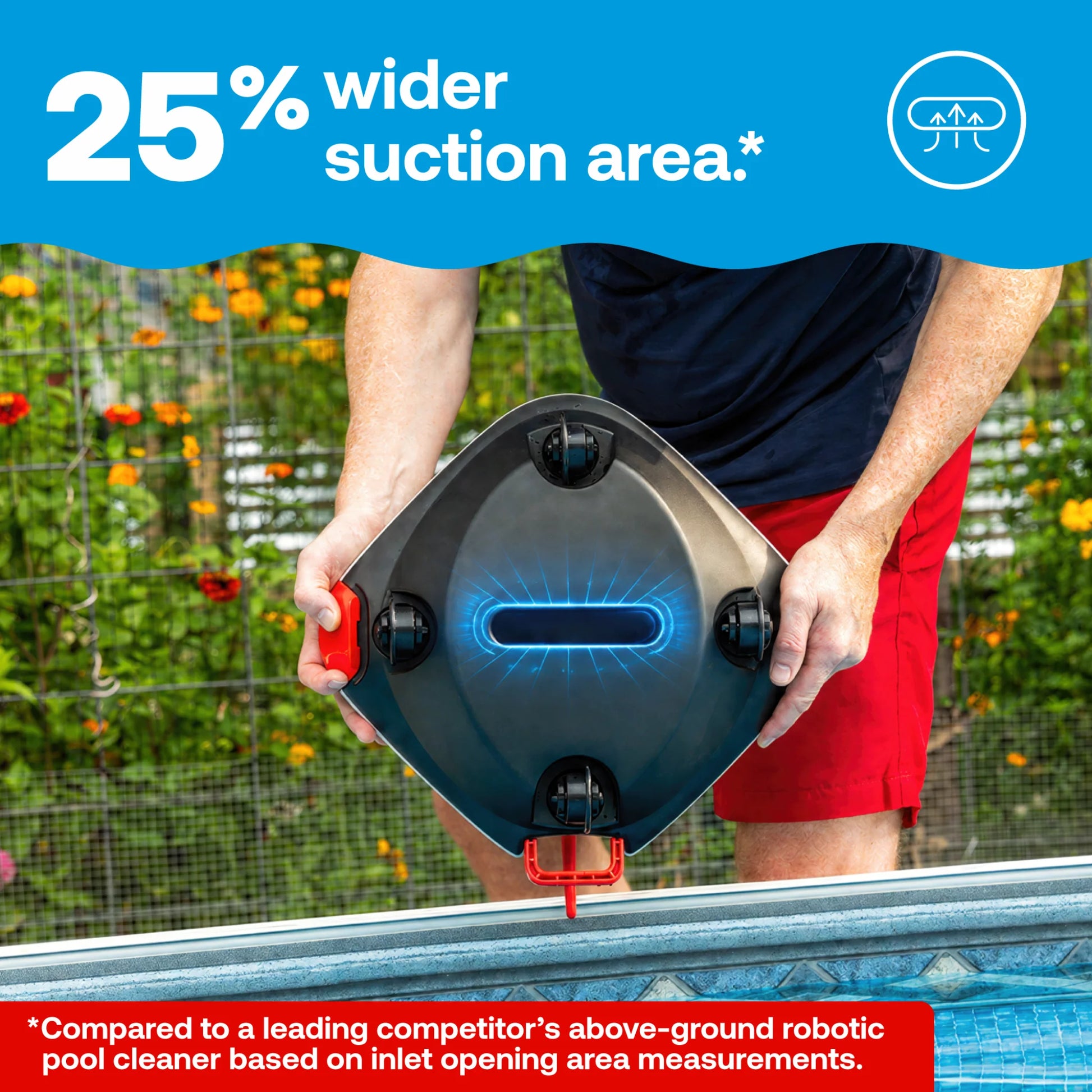

  • HTH robotic pool cleaner showing wide suction inlet designed to capture larger debris in above-ground pools.

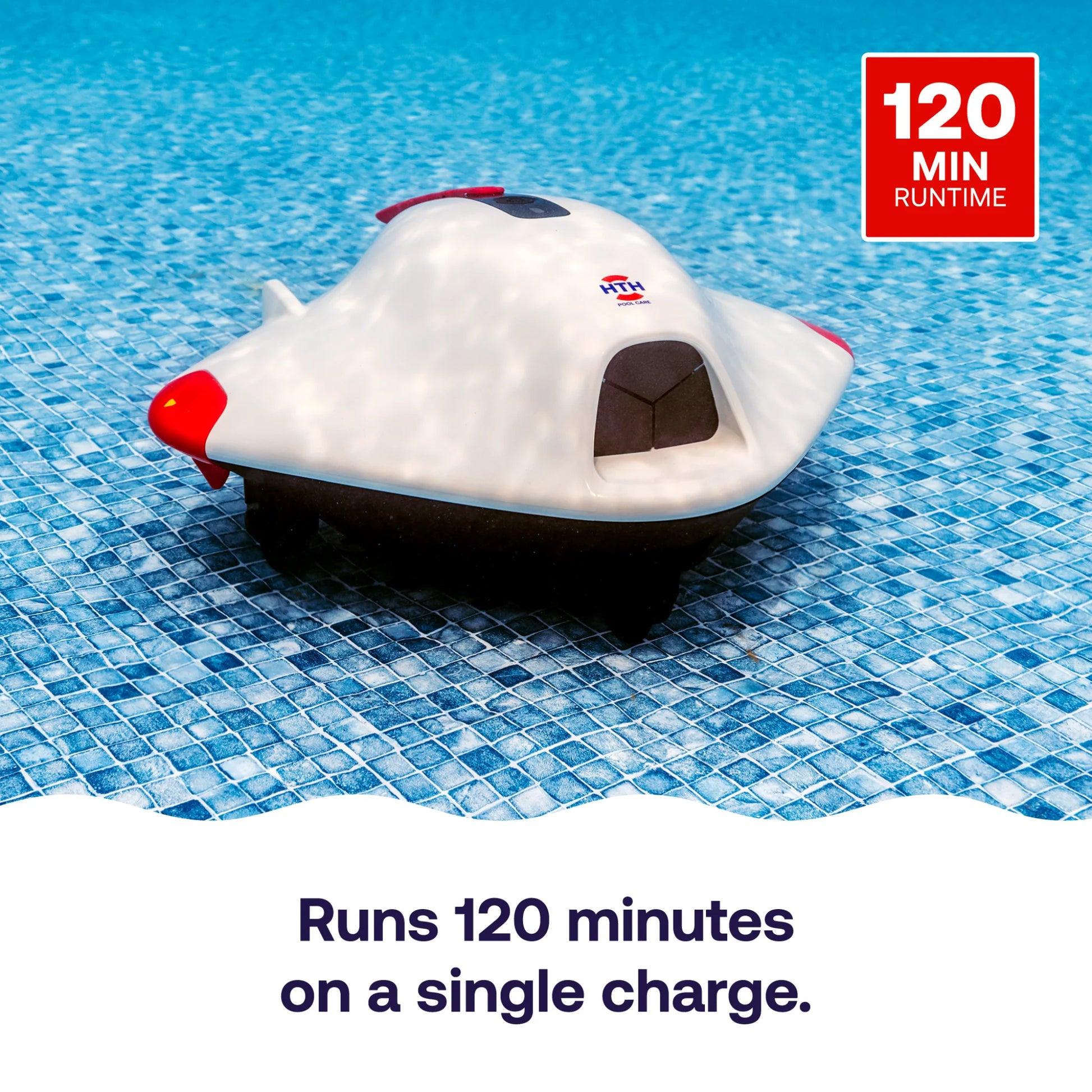

  • HTH robotic pool cleaner operating with up to 120 minutes of runtime on a single battery charge.

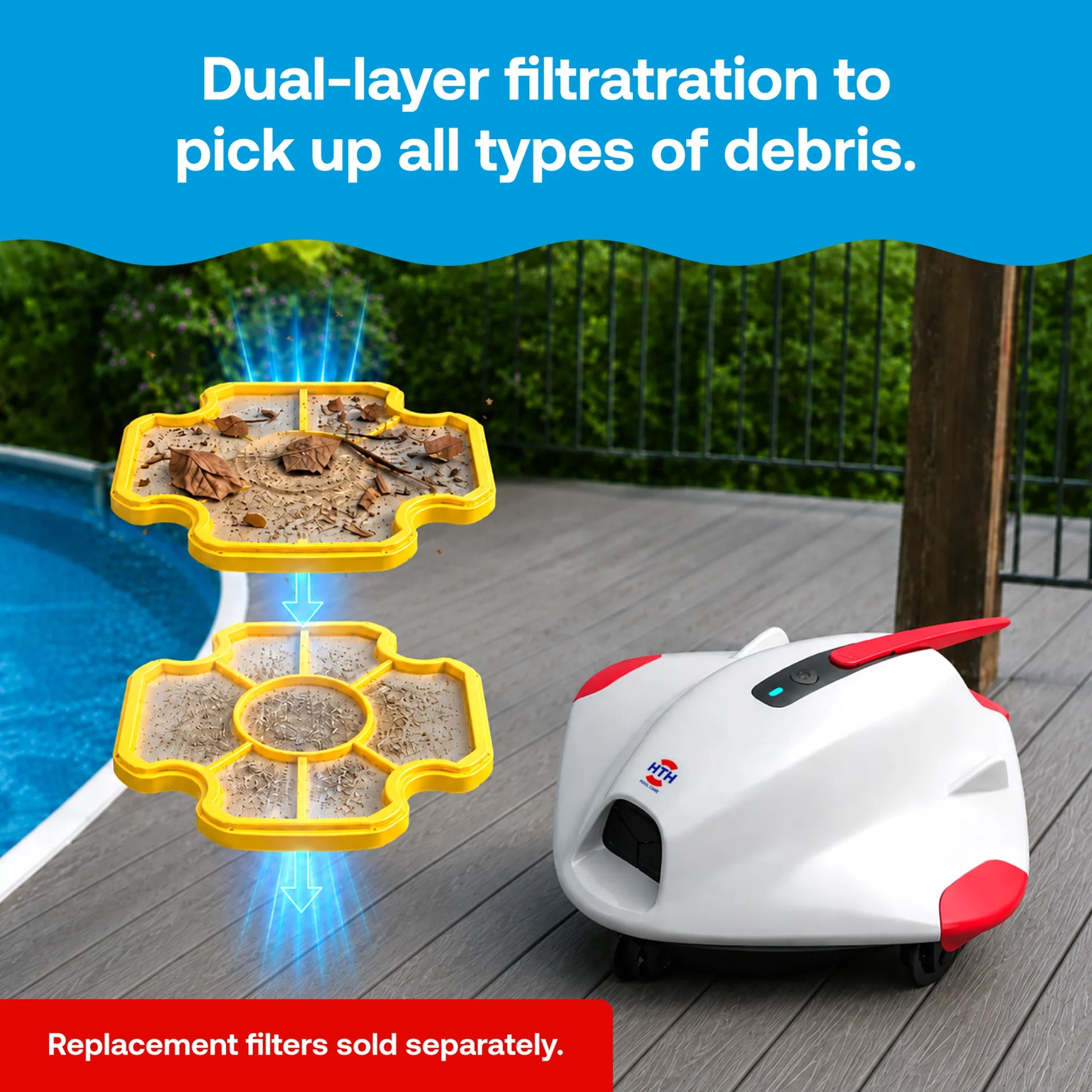

  • HTH robotic pool cleaner featuring a dual-layer filtration system designed to capture both large debris and fine particles.

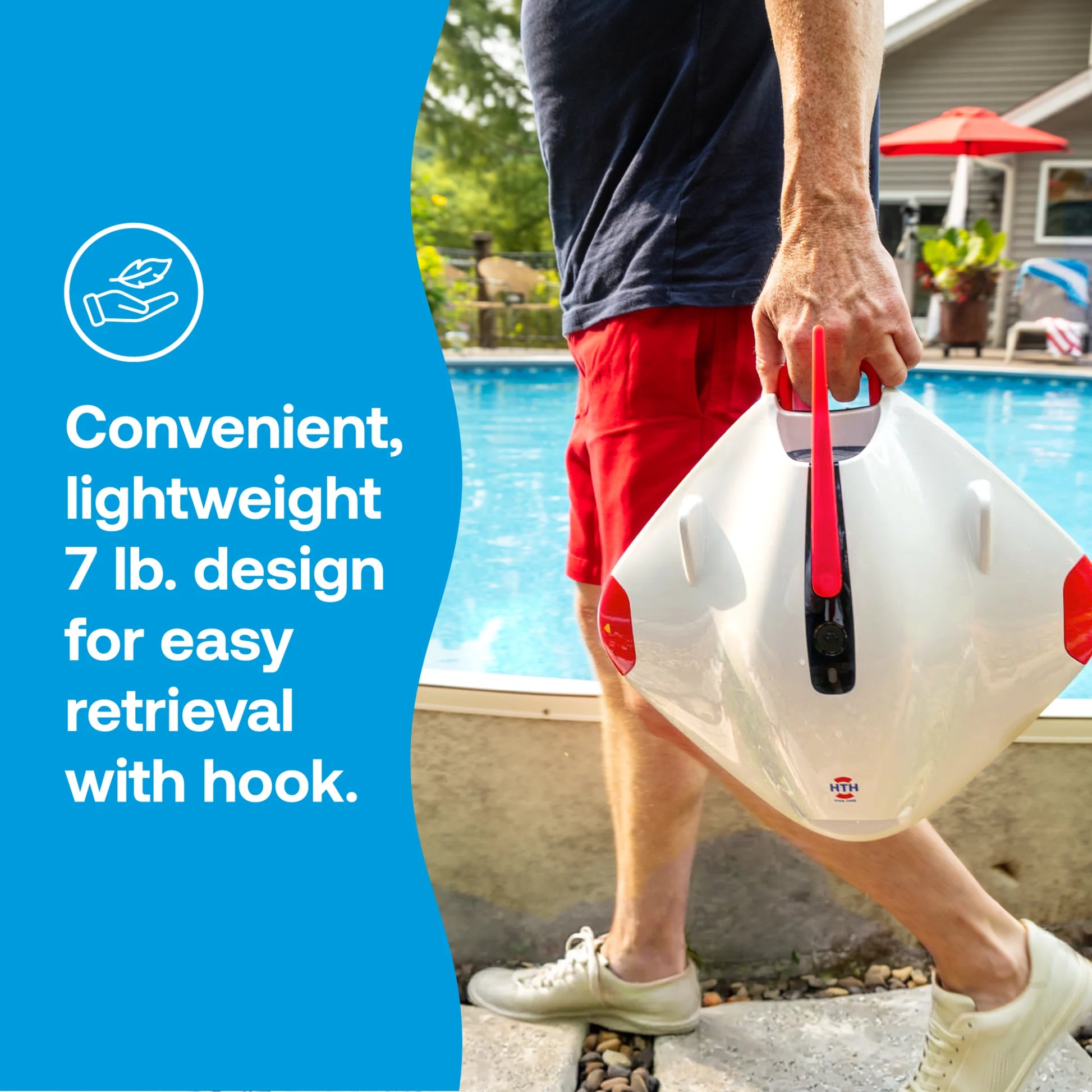

  • Person carrying the lightweight HTH robotic pool cleaner with integrated retrieval hook for convenient pool maintenance.

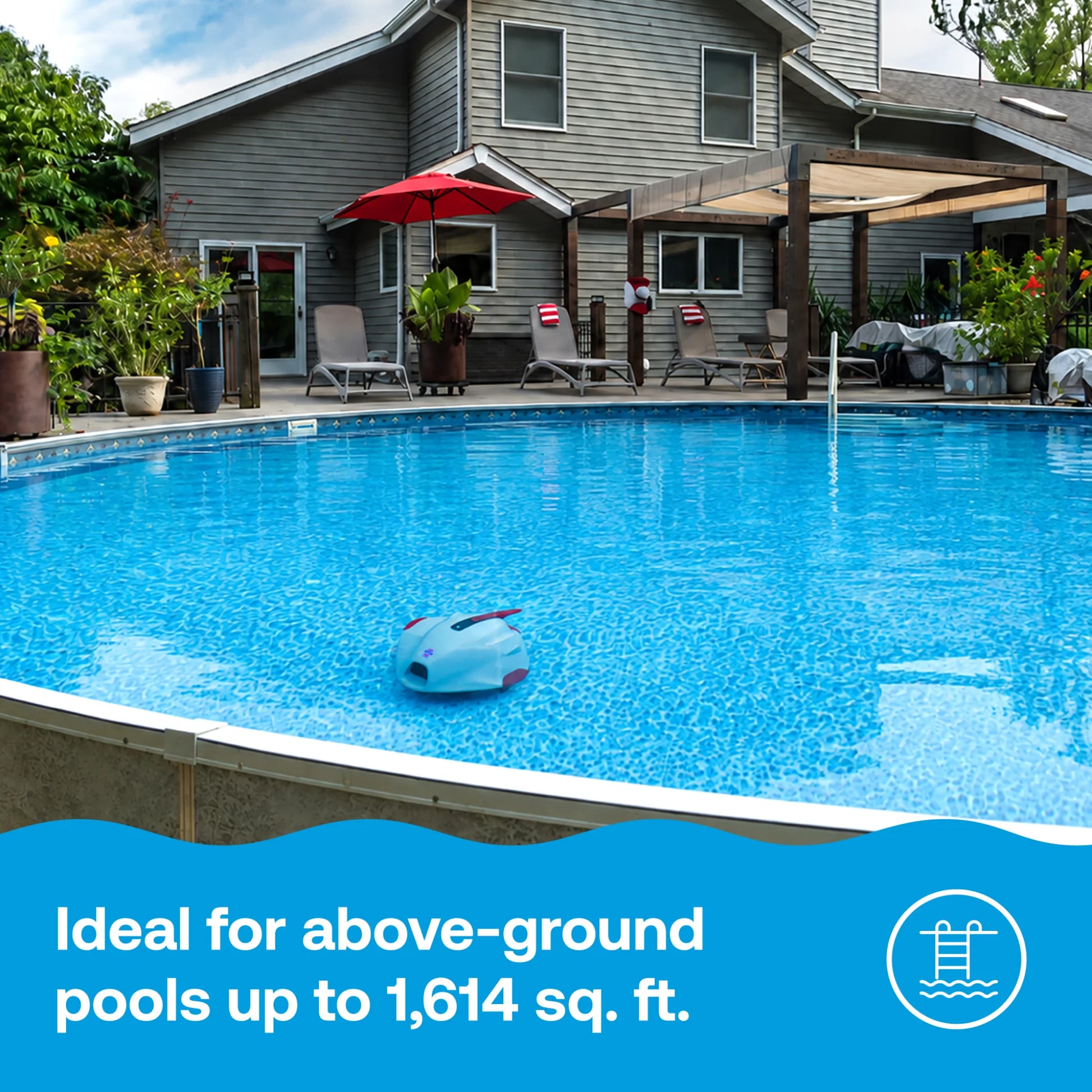

  • HTH above-ground pool robotic cleaner cleaning an above-ground swimming pool and designed for pools up to 1,614 square feet.

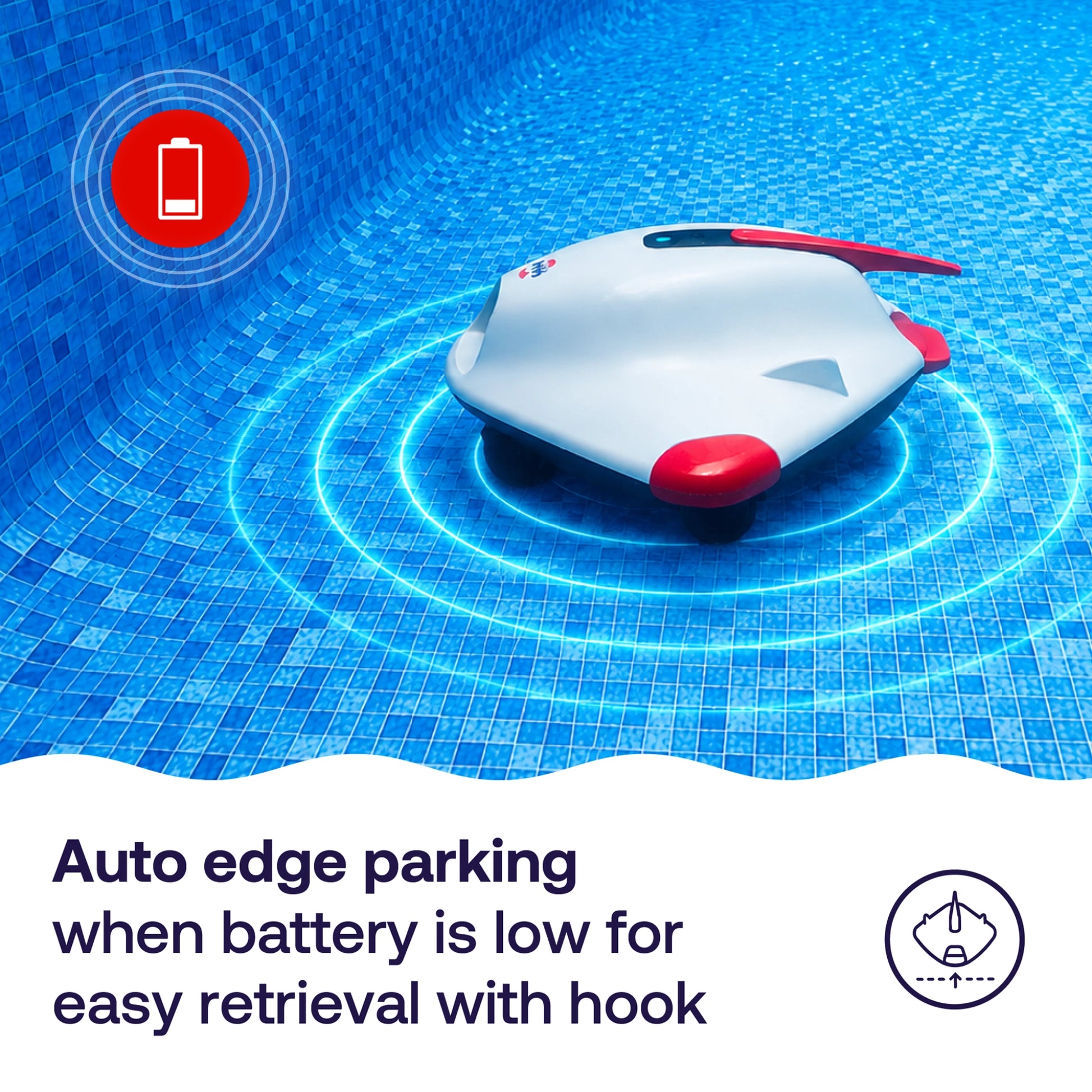

  • HTH robotic pool cleaner with auto edge parking technology that moves the cleaner to the pool wall when battery power is low.

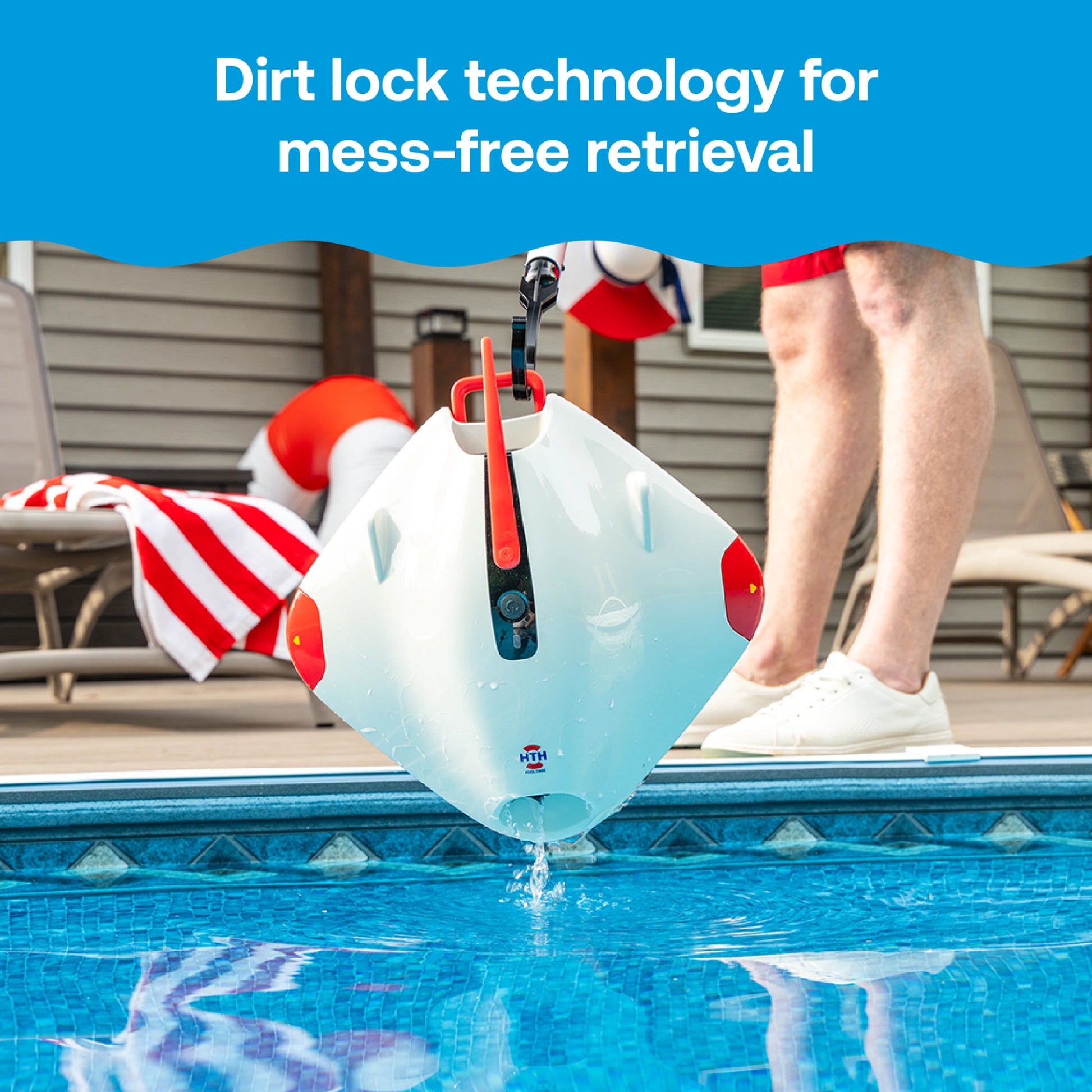

  • HTH robotic pool cleaner being removed from a swimming pool using dirt lock technology for cleaner debris removal.

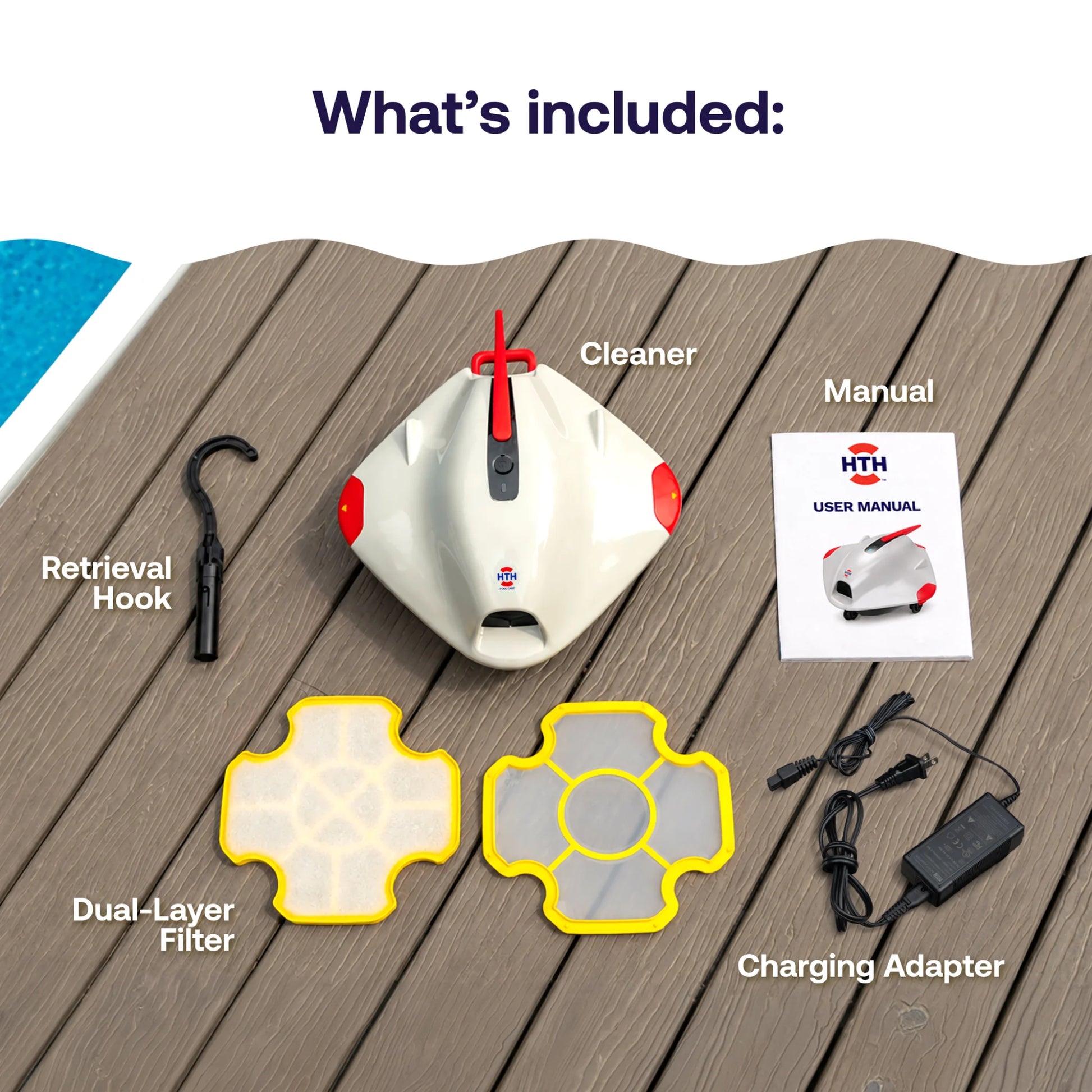

  • HTH Above-Ground Pool Robotic Cleaner package contents including robotic cleaner, retrieval hook, dual-layer filters, charging adapter and user manual.
  • HTH robotic pool cleaner replacement filter package variation image showing multiple approved packaging designs for the dual-layer replacement filter.
  • HTH Pool Care system featuring a robotic pool cleaner, pool chemicals, cleaning accessories and pool maintenance equipment.
  • HTH Pool Care lifestyle image featuring a family enjoying a clean crystal clear swimming pool.

HTH™ Above-Ground Pool Robotic Cleaner

Cordless Above Ground Pool Vacuum Robot

HTH™ Above-Ground Pool Robot Vacuum is a cordless robotic pool cleaner that drops in, cleans efficiently on its own and returns to the edge of the bottom of the pool when it's done. No hoses or cords required. Built on the same trusted reliability HTH™ has delivered for nearly 100 years, and here to help every step of your pool care journey.

  • Cordless, Click Operation: drop it in and let it go
  • 25% Wider Suction Area*: captures more debris in every pass
  • Dual-Layer Filtration: coarse and fine filters catch everything from twigs and leaves to fine sand and hair
  • 120-Minute Runtime: covers 1,614 sq. ft. on a single charge
  • Auto Edge Parking: returns to the pool bottom’s edge when the battery runs low
  • Dirt Lock Technology: keeps debris contained during retrieval

HTH™ is Here To Help since 1928.

*Compared to a leading competitor's above-ground robotic pool cleaner based on inlet opening area measurements.

Product Benefits

Effortless, Click Start
Press the button and the robotic pool cleaner takes over. This cordless pool cleaner does the work while you relax. Features 120-minute runtime and covers 1,614 sq. ft. on a single charge.

Cordless Pool Robot, No Hose or Pump Needed
25% wider suction* captures more debris in every pass from this cordless pool cleaner. Ideal for Above-Ground pools.

*Compared to a leading competitor's above-ground robotic pool cleaner based on inlet opening area measurements.

Rechargeable Pool Cleaner with Auto Edge Parking
When the battery runs low, auto edge parking brings this rechargeable pool cleaner back to the pool bottom’s edge on its own. Dirt lock technology keeps debris contained, so nothing spills back into the water.

Retrieval Hook
At just 7 lbs. with a 1.3L filter for easy emptying, this small pool cleaner is easy to lift in and out of the pool water. Easily retrieve from the bottom of the pool with the included hook.

How to Use
Before Use: Charge the battery fully with the included adapter. Turn the cleaner off before charging and clean the charging port first. This cleaner is designed for flat-bottomed pools only.

Application Instructions: 1. Charge the battery with the provided adapter. A pulsing red indicator means charging. A steady blue indicator means charging is complete. 2. Press and hold the power button for two seconds to turn the cleaner on. 3. Place the cleaner in the water bottom-side down to avoid scratching the pool surface. 4. The cleaner changes direction automatically when it reaches a wall and begins cleaning the pool floor. 5. When the battery runs low the red light flashes for 30 minutes and the cleaner parks at the edge of the pool. 6. Attach the included catch hook to a pool pole, hook the cleaner's handle and lift it to the surface. 7. Wait 70 to 75 seconds at the surface for the cleaner to drain before lifting it out. 8. Press and hold the power button for two seconds to turn the cleaner off, then clean the filter right away.

Indicator Lights:

  • Blue, steady: running or fully charged.
  • Red, pulsing: charging.
  • Red, flashing: 30 minutes of battery remaining.
  • Buzzer with five red flashes at startup: battery too low to run.

Routine Maintenance: Open the cleaner using the buckles on both sides and remove the filter. Rinse the nylon filter screen and the sponge filter screen with clean water, then reassemble. Clean the filter after every use. Wash the sponge filter by hand and avoid excessive force or a pressure sprayer. The sponge filter is a consumable part and normal use will wear it out over time.

Specifications

Product Overview:

The HTH™ Above-Ground Pool Robotic Cleaner is a rechargeable, cordless robot that filters pool water as it cleans the floor. It is designed for flat-bottomed above-ground pools and needs no hose, pump or cord.
Two-stage filtration pairs a 240-micron nylon screen with a sponge filter, moving 26 gallons per minute. The cleaner travels at 59 feet per minute and carries an IPX8 waterproof rating.

Specifications

Rated power: 40W
Water filtration: 26 GPM / 100 LPM
Filtration: 240-micron nylon and sponge
Speed: 59 ft/min
Waterproof rating: IPX8
Product size: 388 x 405 x 107 mm
Charger input: 100-240V, 50/60Hz
Charger output: 25.2V, 1.0A
Operating water temperature: 0°C to 40°C
Storage temperature: -30°C to 65°C

Safety, Storage, and Disposal

Safety and Care

Use only the original charger and only accessories recommended by the manufacturer. Do not run the cleaner out of the water. Do not use the cleaner while people or animals are in the pool. Do not run the cleaner while the pool filter is running. Charge in a shaded, dry place and leave the cleaner uncovered so it does not overheat. Connect the charger to a grounded outlet with leakage protection. Never charge the cleaner with the chassis facing up. Do not puncture, strike or throw the cleaner. Turn the cleaner off during maintenance, during cleaning and when not in use.

Storage

Store the cleaner in a cool, ventilated place out of direct sunlight and away from any heat source. For long-term storage, recharge every three months and keep the battery between 40% and 60%. Letting the battery sit fully discharged can cause permanent damage. Wipe the charging pins dry after every use and reseat the waterproof plug after every charge to prevent corrosion.

Frequently Asked Questions

  • What kind of pool is the HTH™ Above-Ground Pool Robotic Cleaner made for?

    Flat-bottomed above-ground pools. Lower the HTH™ Above-Ground Pool Robotic Cleaner into the water wheels-down so the shell never touches your vinyl liner. This above-ground pool cleaner cleans the pool floor, so a smooth, even bottom gives you the best results. Deep wrinkles or objects on the floor can stop it, since the cleaner is not designed to climb obstacles.

  • Does the HTH™ Above-Ground Pool Robotic Cleaner need the pool pump or filter running?

    No. The HTH™ Above-Ground Pool Robotic Cleaner filters pool water on its own as it works, with no hose, no pump and no cord to connect. Keep the two separate: run your pool filter on its own schedule, and run the cordless pool robot when the filter is off.

  • What filter does the HTH™ Above-Ground Pool Robotic Cleaner use?

    The HTH™ Replacement Filter for the Above-Ground Pool Robotic Cleaner is the pool vacuum filter your cleaner was engineered around. It matches the original suction and debris pickup, down to the housing dimensions. Drop it in, close the lid, done. Search results for pool robot filters fill with aftermarket copies, and quality varies widely between them. Filters clog fastest when your cleaner works the hardest, right after a storm or a week of heavy pollen, so keep a spare on hand. Between changes, rinse the pool vacuum filter and reinstall it.

  • Why are there water droplets inside the package?

    Nothing is wrong. Every HTH™ Above-Ground Pool Robotic Cleaner is water-tested before it leaves the factory, then cleaned and dried before packing. A few drops can stay behind. Wipe it down and get started.

  • Why is the cordless pool robot not turning on?

    Start with a charge. Plug in the charger and watch the LED. A pulsing red light means the battery in the rechargeable pool cleaner is charging, so let it charge fully before you try again. If nothing happens at all with the charger connected, contact customer service and we will take it from there.

  • Why does the pool cleaner pause before it starts cleaning?

    That pause is on purpose. The above-ground pool vacuum robot holds off on starting its pump until it confirms it is fully in the water, and the sensors take a moment to calibrate. Give it a few seconds and it will get to work.

  • Why does the above-ground pool cleaner keep stopping or getting stuck?

    Three quick checks. Look at the wheels and suction ports for trapped debris. Check the pool floor for deep wrinkles or an uneven base. Then look underneath the HTH™ Above-Ground Pool Robotic Cleaner for anything caught there. The above-ground pool cleaner is not designed to climb obstacles, so clearing the floor usually gets it moving again.

  • Why is the robotic pool cleaner losing suction?

    Usually it is the pool vacuum filter. Pull the filter screen, rinse it and reinstall it. If performance is still down, charge the battery fully, since a low charge slows the cordless pool robot too. Clean the filter after every use and you will rarely see this.

  • Why is the charging port on the rechargeable pool cleaner corroding?

    Keep the port dry and it will not. Wipe the charging pin on the rechargeable pool vacuum after every use and dry it with a paper towel or cotton swab. Press the silicone plug back in tightly after each charge so water cannot reach the port.

  • Can you run the pool robot while shocking the pool?

    Give the shock time to work first. Your pool filter needs to run to circulate shock through the water, and the above-ground pool vacuum robot should not run while the filter is running. Shock in the evening and let your filter run overnight. Run the HTH™ Above-Ground Pool Robotic Cleaner the next day, once the filter cycle is done. Clean both filter screens when you finish.
